Type X1 DC Amplifier Development Board

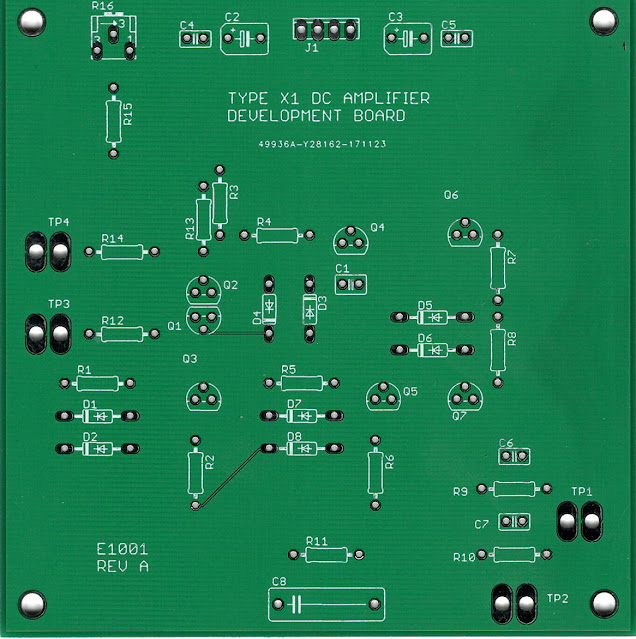

The PCB design I had fabricated to experimentally test and characterize the Type X1 DC Amplifier. I’ve designed dozens of PCBs, but this was my first with Eagle, and I was rushing. So there are some things I don’t like, and I made some little cosmetic errors. But the first one worked the first time, after first assembly. Very gratifying.
